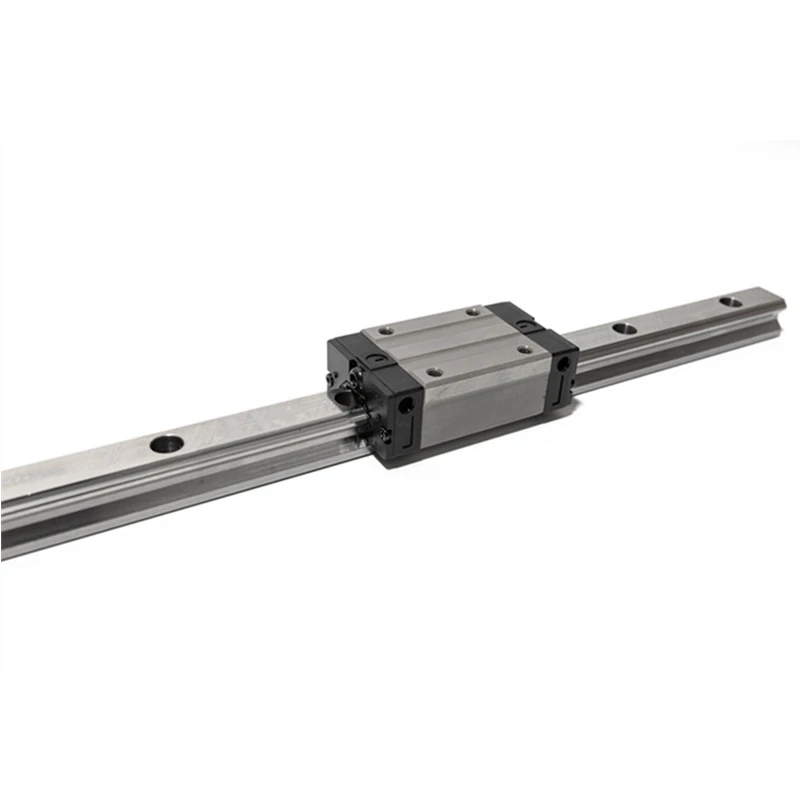

The 1200mm linear rail provides an optimal balance between structural stability and installation flexibility for medium-span applications. This versatile rail length is particularly suitable for industrial automation equipment, material handling systems, and precision measuring instruments where both space utilization and operational accuracy are critical requirements. Manufactured from high-grade steel and subjected to rigorous heat treatment, the rail maintains excellent straightness and wear resistance across its entire length. The standardized 1200mm dimension ensures compatibility with various machine layouts while minimizing the need for custom fabrication. With comprehensive accessory support including mounting brackets and end caps, this linear rail solution offers reliable performance for both original equipment manufacturing and system retrofit projects.
| Key Aspect | Description |
|---|---|
|
Long Stroke & High Rigidity |
The 1200 mm effective stroke meets the requirements of large equipment such as laser cutters, 3D printers, and long-stroke material handling systems. By increasing the rail cross-section and the number of mounting bolt holes, overall rigidity is maintained, preventing deflection. |
|
High Precision Straightness & Flatness |
Long rails demand extremely high flatness of the mounting base (typically ≤ 0.05 mm over the full length). Precision grinding technology ensures running parallelism within 0.02 mm, guaranteeing accurate long-distance positioning and repeatability. |
| Multi-Block Configuration & Load Sharing | Supports 2 to 4 blocks per rail, optimizing load distribution, reducing the load on each block, and extending service life. Multiple blocks effectively resist overturning moments over long strokes. |
| Mounting & Support Structure | Must be paired with a high-rigidity, stress-relieved mounting base (e.g., cast iron, granite, or thick steel plate) to avoid rail distortion caused by base deformation. Support points are recommended at intervals of 500–600 mm. |
| Thermal Expansion Compensation | At a length of 1200 mm, temperature changes cause significant expansion/contraction (approx. 0.012 mm/°C·m for stainless steel). A fixed + support end mounting configuration must be provided to allow axial free expansion at one end. |
| Optional Splicing Solution | If manufacturing or transportation constraints exist, precision butt splicing technology can join two rail sections to achieve an ultra-long stroke. The joint is smooth and step-free, ensuring unaffected carriage movement. |
| Environmental Resistance & Maintenance-Free Options | Long rails are commonly used in large automation equipment. Stainless steel material can be selected for rust resistance, or self-lubricating units can be equipped to reduce maintenance frequency over long strokes. |
Specifications
Our Advantage
Intelligent Segmentation Control Technology
We employ unique stress relief technology, ensuring precision stability throughout the 1200mm length through multi-stage aging treatment to eliminate internal stresses
Digital Precision Management System
Each rail comes with a unique QR code, providing complete accuracy data, installation records, and maintenance history for full lifecycle management
Environment Adaptive Design
Through special surface treatment technology and material formulation, the rail adapts to harsh conditions like high temperature and humidity while maintaining stable motion accuracy
Rapid Integration Solutions
We offer pre-assembled modular kits with precisely positioned mounting bases and calibration tools, helping customers reduce equipment assembly time by over 50%
Intelligent Early Warning Service System
Based on big data analysis, we provide wear warnings and preventive maintenance suggestions to effectively avoid unexpected downtime
Green Manufacturing Process
Using eco-friendly coatings and recyclable packaging materials, achieving zero wastewater discharge in production, complying with international environmental standards
Our service
Dynamic Precision Monitoring Service
We provide post-installation accuracy tracking service, regularly monitoring rail operation status through portable detection equipment to ensure long-term accuracy
Intelligent Selection Configuration System
Customers can use our online configuration platform to input parameters like load and speed, automatically generating optimal 1200mm rail configuration solutions
On-site Installation Quality Certification
We offer professional installation quality certification service, with technicians conducting on-site inspections and issuing certification reports to ensure optimal system performance
Performance Optimization Upgrade Service
For existing rail systems, we offer block preload adjustment and lubrication system upgrades to effectively improve equipment operation efficiency
Emergency Response Guarantee System
We have established a 24-hour emergency service mechanism offering remote diagnosis and emergency parts dispatch to ensure uninterrupted customer production
Professional Technical Training Courses
We regularly conduct linear rail application training courses covering installation techniques, troubleshooting, and accuracy optimization to enhance customer maintenance capabilities
Our factory
Zhejiang Baili Guide Rail Co., Ltd. - 1200mm Precision Rail Specialist
Professional Positioning · Ingenuity Heritage
Zhejiang Baili Guide Rail Co., Ltd., as an established enterprise in the linear transmission field, consistently focuses on the R&D and manufacturing of standardized guide rails. We deeply understand the precise requirements for standard-sized rails in industrial applications, with the 1200mm linear rail series representing the epitome of our decades of technical expertise.
Process Characteristics · Continuous Improvement
Standardized Precision Manufacturing
Utilizing automated production lines and digital detection systems, we ensure precision consistency for every 1200mm rail, with straightness error strictly controlled within 0.015mm
Professional Heat Treatment Technology
Employ advanced mesh - belt heat treatment production lines to ensure uniform rail hardness (core hardness: HRC58 - 62) and guarantee product service life.
Comprehensive Quality System
Establish 28 key quality control points from raw material storage to finished product shipment, ensuring each rail meets enterprise standards and customer requirements.
Products are widely used in:
Automated production lines
industrial robot systems
precision machine tool equipment
logistics conveying systems.
Win-Win Cooperation
Provide product certification and inspection reports. Establish responsive technical service teams. Build reliable supply - chain guarantee systems. Build quality with expertise and create value through service.
FAQ
1. Q: What is the straightness tolerance standard for 1200mm rails?
A: We implement enterprise high standards, controlling straightness within 0.02mm over the full 1200mm length, with third-party inspection reports provided
2. Q: What special considerations are needed during installation?
A: We recommend the three-point support method to avoid end suspension, and using a torque wrench to tighten bolts in diagonal sequence
3. Q: How to handle minor scratches on the rail surface?
A: Special polishing paste with wool wheels can be used; scratches under 0.01mm depth don't affect performance
4. Q: How to verify if the rail hardness meets standards?
A: We provide material certificates and hardness test reports for each batch; customers can also use portable hardness testers for on-site verification
5. Q: How to ensure rust protection in humid environments?
A: We recommend using long-term anti-rust oil and regularly checking seal integrity; we offer special anti-rust solutions
6. Q: What could cause uneven slider movement?
A: Possible causes include uneven mounting surface, tight seals, or insufficient lubrication; we offer remote diagnosis services
7. Q: Can you provide customized end machining?
A: Yes, we support end chamfering, drilling, tapping, etc.; detailed machining drawings are required
