Hey there! As a supplier of square linear guides, I often get asked about the installation dimensions of these nifty components. So, I thought I'd take a moment to break it all down for you.
First off, let's talk about what square linear guides are and why installation dimensions matter. Square linear guides are essential in many industrial applications. They provide smooth, precise linear motion, which is crucial for things like CNC machines, 3D printers, and automated assembly lines. The installation dimensions are super important because they determine how well the guide will fit into your system and how effectively it will perform.

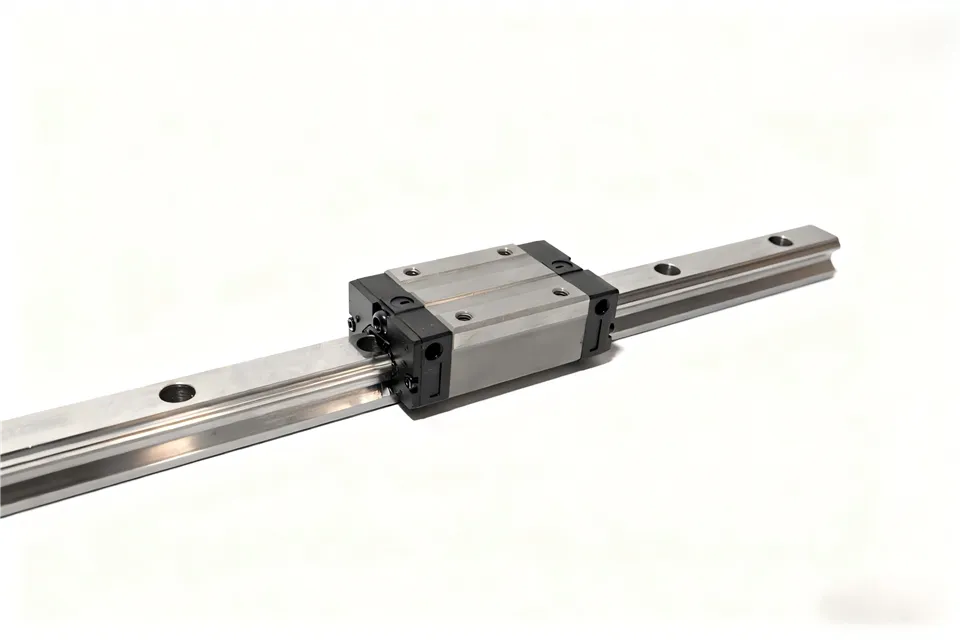

When it comes to the installation dimensions of square linear guides, there are a few key measurements you need to pay attention to. The length of the guide is one of the most obvious ones. We offer a variety of lengths to suit different needs. For example, we have the 2000mm Linear Rail which is great for larger machines that require a long travel distance. On the other hand, if you're working on a smaller project, the 400mm Linear Rail might be more your speed.
The width of the guide is another critical dimension. It needs to match the mounting surface of your machine. A guide that's too wide or too narrow won't fit properly and can cause all sorts of problems, like uneven wear and reduced performance. The height of the guide also plays a role. It affects the overall clearance in your system and how the guide interacts with other components.
Let's take a closer look at one of our popular products, the HGR20 200mm Linear Guideway Rails. For this particular guide, the installation dimensions are carefully designed to ensure a perfect fit in a wide range of applications. The length of 200mm is ideal for medium - sized projects where you need a bit more travel than a very short guide can offer, but not as much as a long one.
The width of the HGR20 is optimized to provide a stable mounting base. It's wide enough to distribute the load evenly, which helps to extend the lifespan of the guide. The height is also set at a level that allows for easy integration with other parts of the machine. When installing this guide, you'll want to make sure that the mounting holes on your machine align precisely with the holes on the guide. This ensures that the guide is securely fastened and can operate smoothly.
Now, you might be wondering how to measure for the installation of square linear guides. Well, it's not as complicated as it might seem. First, you need to measure the available space in your machine where the guide will be installed. Make sure to measure the length, width, and height accurately. You should also check the mounting surface for any irregularities or damage. A smooth and flat surface is essential for a proper installation.
Next, you'll want to refer to the product specifications for the specific square linear guide you've chosen. These specs will give you all the detailed installation dimensions, including the size and spacing of the mounting holes. It's a good idea to use a precision measuring tool, like a caliper or a micrometer, to ensure the most accurate measurements.
When it comes to actually installing the guide, there are a few best practices to keep in mind. Start by cleaning the mounting surface thoroughly to remove any dirt, debris, or grease. This helps to ensure a good bond between the guide and the machine. Then, align the guide with the mounting surface and insert the mounting bolts. Don't tighten them all the way at first. Instead, loosely fasten them and then check the alignment again. Once everything is perfectly aligned, you can tighten the bolts to the recommended torque.
Proper installation is crucial for the performance and longevity of your square linear guides. If the guide is installed incorrectly, it can lead to premature wear, increased friction, and even failure of the guide. This can result in costly downtime and repairs for your machine.
In addition to the physical installation dimensions, you also need to consider the environmental factors. For example, if your machine operates in a dusty or dirty environment, you might need to choose a guide with additional protective features. Some square linear guides come with dust covers or seals to prevent contaminants from entering the guide and causing damage.
Another thing to think about is the load capacity of the guide. The installation dimensions can have an impact on how much weight the guide can handle. A wider and taller guide generally has a higher load capacity than a smaller one. So, make sure to choose a guide that can support the expected load in your application.
If you're still not sure about the installation dimensions or how to install square linear guides, don't worry. Our team of experts is always here to help. We can provide you with detailed technical support and answer any questions you might have. Whether you're a seasoned professional or a DIY enthusiast, we're committed to making sure you get the most out of our products.
So, if you're in the market for square linear guides, we've got you covered. We offer a wide range of high - quality products with precise installation dimensions to meet your needs. And if you have any specific requirements or customizations, we can work with you to find the perfect solution.
If you're interested in purchasing square linear guides or have any questions about the installation dimensions, feel free to reach out to us. We're eager to start a conversation and help you find the right products for your project. Let's work together to make your machine run smoothly and efficiently.
References
- Industry standards for linear guide installation
- Product manuals for square linear guides
